JEFFTRON JT-LEV-NG Leviathan NGRS Optical (Rear Wiring)JEF418004
Description
The Leviathan NGRS is one of the most advanced ETU (electronic trigger unit) on the market
It combines optical and switch sensors for better handling and durability
Build-in wireless communication for quick setup using iOS or Android smartphones!
Tactile trigger switch has travel only 0,13mm long for ultimate hair trigger feeling
External output and input port serves for custom accessories
Real time response for change settings -> immediately test result
Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts)
New functions are for free for every user via online update
Leviathan NGRS supports these airsoft guns:
· Tokyo Marui M4 Next Generation
·Tokyo Marui HK416D Next Generation
· Tokyo Marui HK416C Next Generation
· Tokyo Marui SCAR-L Next Generation
· Tokyo Marui SCAR-H Next Generation
· Tokyo Marui HK417 Next Generation
MAIN FUNCTIONS:
· Optical sensors are used for detection the selector plate and the sector gear
· Tactile trigger switch makes short click for great hair trigger mod.
· Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15
· Adds new shooting modes independent for every position on the fire selector (SAFE - SEMI - AUTO)
· Three adjustable bursts (range 2 - 20 shots)
· It preserves empty magazine detection like the original gun
· Rate of fire can be reduce to 40%. It add breaks between shots to reduce RoF. It gives fast trigger response even with very low rate of fire, just like in a real gun
· Adjustable strength active braking (can be disabled)
· Pre-cocking function for instant shot on SEMI fire
· Delay between shots adds time in which isn't possible to shoot, it simulates the delay from gun reload or recoil (range 0,1 - 4,0 seconds)
· Electronic fuse set sensitivity for high current detection to avoid any damage if something goes wrong
· Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
· Virtual magazine simulates low capacity magazines, it will force the gun to stop shooting when it reach 0. There can be set warning after shot before empty magazine and how it will be reloaded
· On the board are input and output ports for controlling external devices or Leviathan
· Statistics screen shows shooting output with cycle timing, motor current consumption, rate of fire and temperatures. It allows you to do fine-tune gearbox upgrade
· Application shows actual battery voltage value. Color lines indicates battery charge status where green is OK, orange will warn after each shot and red will not allow to shoot
· User can save multiple settings under profiles
· Update function fixes bugs and adds new features to the device
· There are three shot counters. Total count every shot during the device lifetime. User counter can be reset by user anytime. Power-up counter is reset by battery connection
· Error log shows errors made during the device life also can be erased by user
· For better security wireless connection can be disable by the selector switch (can be deactivated)
· Leviathan monitors current, voltage and temperature to avoid any damage when something go wrong
· Motor vibrates and beeps as a feedback for user
· Programmed settings are saved in the Leviathan memory immediately after their change, so you can immediately test it and settings aren't lost when is battery disconnected or lost connection with smartphone
· New functions are for free for every user via online update function
TECHNICAL SPECIFICATIONS:
· Easy installation inside the gearbox version NGRS by Tokio Marui
· Stock gearbox needs light modification to fit Leviathan wiring without damaging them - see pictures:
***Please skip this part, if you already bought CNC gearbox from Retroarms, because it has enough room for the wiring
· If you want functions on SAFE position, cut the selector plate in the red area. WARNING: Mechanical locking will be disabled
· It uses optical sensor actuated by sector gear cam for perfect semi and burst fire timing
· For fire selector position is used optical sensor too - it works with sticker provided with Leviathan
· Tactile trigger switch makes short click for great hair trigger mod
· Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15
· Thanks to advanced electronics, Leviathan - NGRS can be used with any common gearbox upgrade and gun rate of fire
· Comes with wires to stock (loose end) with mini 40A fuse and deanT connector to solder after gun assembly
· There are high quality power wires 1,5 qmm (AWG16) with thin and hard MPPE insulation and signal blue wire 0.34 qmm (AWG24) with MPPE insulation
· Power wires outer diameter is only 2,06 mm and blue wire 1,24 mm
· Board covered by conformal coating, it protect Leviathan - NGRS against damage from water
· On the board is input port for controlling output port, 3rd burst, external trigger, magazine reload, etc. and output port for the hop-up chamber BBs illumination, powering electric magazine, flashlight, laser, etc.
leviathan-ngrs-input leviathan-ngrs-output
· For right pre-cocking function is necessary to have in the gearbox functional antireverse latch. WARNING: it increases wear and tear on the gearbox.
· Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
· Device increases gun rate of fire and battery holds longer, than with basic wiring
· With active braking ON piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
· In weapons with very high rate of fire (ROF) active brake solves multiple shots in semi mode
· The braking effect is the most powerful with high torque motor. Note: Lower braking intensity spares the motor coils.
· Remove from the gearbox: cut off lever, trigger contacts and trigger block, you will not need them with the Leviathan - NGRS
PACKING:

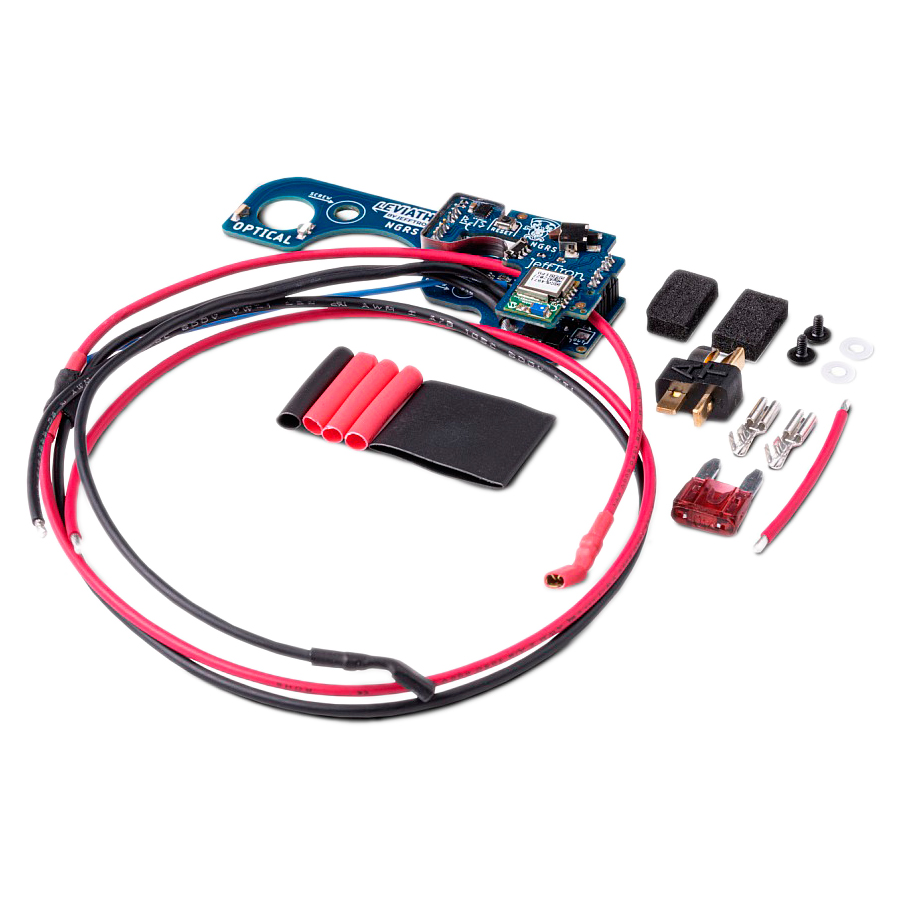

· Leviathan - NGRS drop-in electronic module with loose wiring to stock
· 40A fuse, 2x faston and T-Plug connectors, red wire and heatshrinks to finish wiring at the battery end
· 2x Screw with washer for securing device in the gearbox
· 2x Foam to keep device in place
· Black Leviathan sticker 40 mm
· Installation manual in English
leviathan-ngrs-package
SAFETY WARNING:
· Installation of this device into the gearbox requires advanced technician skills!
· Please read these informations before installing your device to prevent any damage.
· Short circuit or incorrectly connected battery will cause immediate damage to the device which is not covered by the warranty. It can lead to fire or even battery explosion.
· Disconnect battery, when you aren't using the gun! Otherwise you will fully discharge the battery. Because the device drains small amount of current from the bettery all the time.
· Do not connect battery when gun pointing towards you, another person or an animal.
· Do not modify, repair and put into any kind of liquids or thermal shock the Leviathan - NGRS.
It combines optical and switch sensors for better handling and durability
Build-in wireless communication for quick setup using iOS or Android smartphones!
Tactile trigger switch has travel only 0,13mm long for ultimate hair trigger feeling
External output and input port serves for custom accessories
Real time response for change settings -> immediately test result
Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts)
New functions are for free for every user via online update
Leviathan NGRS supports these airsoft guns:
· Tokyo Marui M4 Next Generation
·Tokyo Marui HK416D Next Generation
· Tokyo Marui HK416C Next Generation
· Tokyo Marui SCAR-L Next Generation
· Tokyo Marui SCAR-H Next Generation
· Tokyo Marui HK417 Next Generation
MAIN FUNCTIONS:
· Optical sensors are used for detection the selector plate and the sector gear
· Tactile trigger switch makes short click for great hair trigger mod.
· Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15
· Adds new shooting modes independent for every position on the fire selector (SAFE - SEMI - AUTO)
· Three adjustable bursts (range 2 - 20 shots)
· It preserves empty magazine detection like the original gun
· Rate of fire can be reduce to 40%. It add breaks between shots to reduce RoF. It gives fast trigger response even with very low rate of fire, just like in a real gun
· Adjustable strength active braking (can be disabled)
· Pre-cocking function for instant shot on SEMI fire
· Delay between shots adds time in which isn't possible to shoot, it simulates the delay from gun reload or recoil (range 0,1 - 4,0 seconds)
· Electronic fuse set sensitivity for high current detection to avoid any damage if something goes wrong
· Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
· Virtual magazine simulates low capacity magazines, it will force the gun to stop shooting when it reach 0. There can be set warning after shot before empty magazine and how it will be reloaded
· On the board are input and output ports for controlling external devices or Leviathan
· Statistics screen shows shooting output with cycle timing, motor current consumption, rate of fire and temperatures. It allows you to do fine-tune gearbox upgrade
· Application shows actual battery voltage value. Color lines indicates battery charge status where green is OK, orange will warn after each shot and red will not allow to shoot
· User can save multiple settings under profiles
· Update function fixes bugs and adds new features to the device
· There are three shot counters. Total count every shot during the device lifetime. User counter can be reset by user anytime. Power-up counter is reset by battery connection
· Error log shows errors made during the device life also can be erased by user
· For better security wireless connection can be disable by the selector switch (can be deactivated)
· Leviathan monitors current, voltage and temperature to avoid any damage when something go wrong
· Motor vibrates and beeps as a feedback for user
· Programmed settings are saved in the Leviathan memory immediately after their change, so you can immediately test it and settings aren't lost when is battery disconnected or lost connection with smartphone
· New functions are for free for every user via online update function
TECHNICAL SPECIFICATIONS:
· Easy installation inside the gearbox version NGRS by Tokio Marui
· Stock gearbox needs light modification to fit Leviathan wiring without damaging them - see pictures:
***Please skip this part, if you already bought CNC gearbox from Retroarms, because it has enough room for the wiring
· If you want functions on SAFE position, cut the selector plate in the red area. WARNING: Mechanical locking will be disabled
· It uses optical sensor actuated by sector gear cam for perfect semi and burst fire timing
· For fire selector position is used optical sensor too - it works with sticker provided with Leviathan
· Tactile trigger switch makes short click for great hair trigger mod
· Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15
· Thanks to advanced electronics, Leviathan - NGRS can be used with any common gearbox upgrade and gun rate of fire
· Comes with wires to stock (loose end) with mini 40A fuse and deanT connector to solder after gun assembly
· There are high quality power wires 1,5 qmm (AWG16) with thin and hard MPPE insulation and signal blue wire 0.34 qmm (AWG24) with MPPE insulation
· Power wires outer diameter is only 2,06 mm and blue wire 1,24 mm
· Board covered by conformal coating, it protect Leviathan - NGRS against damage from water
· On the board is input port for controlling output port, 3rd burst, external trigger, magazine reload, etc. and output port for the hop-up chamber BBs illumination, powering electric magazine, flashlight, laser, etc.
leviathan-ngrs-input leviathan-ngrs-output
· For right pre-cocking function is necessary to have in the gearbox functional antireverse latch. WARNING: it increases wear and tear on the gearbox.
· Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
· Device increases gun rate of fire and battery holds longer, than with basic wiring
· With active braking ON piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
· In weapons with very high rate of fire (ROF) active brake solves multiple shots in semi mode
· The braking effect is the most powerful with high torque motor. Note: Lower braking intensity spares the motor coils.
· Remove from the gearbox: cut off lever, trigger contacts and trigger block, you will not need them with the Leviathan - NGRS
PACKING:
· Leviathan - NGRS drop-in electronic module with loose wiring to stock
· 40A fuse, 2x faston and T-Plug connectors, red wire and heatshrinks to finish wiring at the battery end
· 2x Screw with washer for securing device in the gearbox
· 2x Foam to keep device in place
· Black Leviathan sticker 40 mm
· Installation manual in English
leviathan-ngrs-package
SAFETY WARNING:
· Installation of this device into the gearbox requires advanced technician skills!
· Please read these informations before installing your device to prevent any damage.
· Short circuit or incorrectly connected battery will cause immediate damage to the device which is not covered by the warranty. It can lead to fire or even battery explosion.
· Disconnect battery, when you aren't using the gun! Otherwise you will fully discharge the battery. Because the device drains small amount of current from the bettery all the time.
· Do not connect battery when gun pointing towards you, another person or an animal.
· Do not modify, repair and put into any kind of liquids or thermal shock the Leviathan - NGRS.
